Solar Power Myth

The RTA insists on the use of solar power for school zone flashing lights. To quote the Roads Minister from Hansard: "In general, solar powered is the preferred option and the RTA only uses mains power where solar power options are not viable."

Here are a few facts about solar power vs mains power in this application that illustrate why the RTA has once again got it completely wrong:

  1. The electricity to run mains powered lights costs around $1 per year. The batteries in solar systems have to be changed every 3 years, which costs $500 (see here p.3) or $166 per year. Running one set of solar powered lights thus costs the same as running 166 sets of mains powered lights.

  2. The claimed life of a solar powered system is around 25 years but the effective life is a fraction of that thanks to vandalism, theft of the solar panels, vehicle impact, hail damage, etc. When that is factored in the running cost of solar powered lights increases to over 200 times that of mains powered lights.

  3. Total energy usage is also higher if the manufacture of the solar panels and batteries is taken into account. In fact the truck that drives out to replace the batteries every 3 years will use more energy on that trip, if it drives further than 3km, than mains powered lights use in the entire 3 year period.

  4. If every school zone had flashing lights, as they should have, there would be around 20,000 flashing light signs. If they were all solar powered the battery replacement would produce around 30 tonnes of waste lead and acid per year, both very polluting. A similar amount of new material would have to be produced, again very polluting. Solar powered lights thus have more impact on the enviromnent than mains powered lights.

  5. Solar powered lights are less reliable, especially during extended periods of overcast weather.

  6. The installation cost of mains powered lights is less than that of solar powerered lights where the lights are located close to a power pole and the ongoing battery replacement cost is factored in.

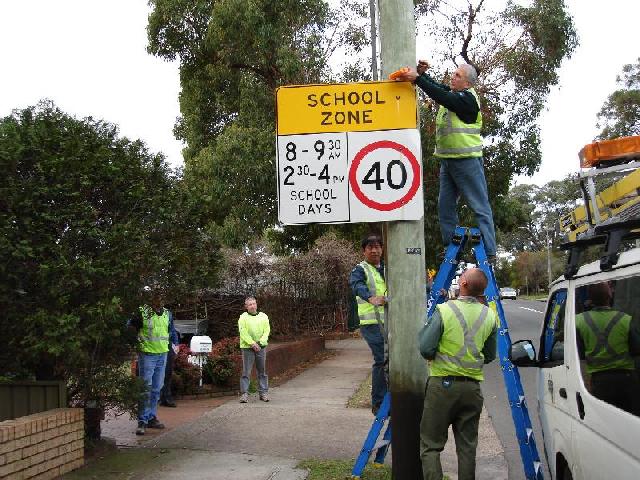

    That naturally assumes private enterprise installs the lights, not the RTA. The photo below shows the RTA tearing down one of my sets of lights in Peakhurst in 2006. It took 5 men and 3 trucks to remove the lights, and they were just one of several teams that went out to remove my lights that day. I had single-handedly installed all eight sets of lights the previous weekend.

RTA removal
How many RTA workers does it take to change a light bulb...?

Solar Desert

Below is an interesting article on the cost of solar power that I found on the web somewhere:

"Solar Desert" is a simple idea: Cover the world's deserts with solar panels.

A group of companies is planning a 3,200 acre, 300MW solar farm in the New Mexico desert. 3,200 acres of solar to generate 300MW boils down to about 11 acres per MW. For Southern US we get the equivalent of about 6 hours of full sunshine every day due to seasonal sun angle and darkness. Central Australia gets about 5.5 - go figure. So, 6/24 being about of a day the average output needed is about 44 acres/MW to make up for dark periods if we want 24 hr operation. This way we generate 4x the amount of power we need while the sun is out and rely on batteries for remaining of the day when it is dark or at twilight. If we assume that charging and discharging batteries is about 80% efficient then we need about 55 acres for every MW we want to be supplied over 24 hours. So if we have 55 acres of solar we can generate an average of 1 MW/hr daily.

If a three unit nuclear plant generates 3,000MW (Palo Verde NPS = 3,800) then at 55 acres per MW we would need 165,000 acres to equal the production of a nuclear plant 24 hours a day. With 640 acres per square mile we would need about 258 square miles of solar. That would be a square about 16 miles on a side.

Now since a solar plant only works during daylight we will need batteries to be able to supply balanced power over a 24hr period. To supply battery power for 24 hours means we need a rack of batteries. Assuming 12v 104Ah (24hr) batteries we will need about 75 million batteries according to a handy dandy battery calculator I found on the net. If each battery, its housing, inverter, cables and access path takes up 3 square feet then we need about 225 million square feet of space for our batteries. That would be a square almost 3 miles on a side, or about 2,500 Wal-mart Super Centers.

Of course batteries only last 5 years so we would be replacing 15 million batteries a year or about 1 million per month. If we continue with this and assume each battery weights say 20 pounds and half of that is lead and half is acid then we are disposing 500,000 pounds of lead and 500,000 pounds of acid a month.

The 300MW plant listed at the beginning of this article is priced at $1.5B. Now we are going to build a 15,000,000,000watt plant (to get the equivalent of 3,000MW/hr/day in only 6 hr of full daylight) and using that as our yardstick we can guess our plant would cost about $50B. By comparison it costs about $6B to build a nuke and about $300M to decommission. So we could build and decommission 8 nuclear plants for the same price it would cost us to build one solar plant. Are we having fun yet?"
